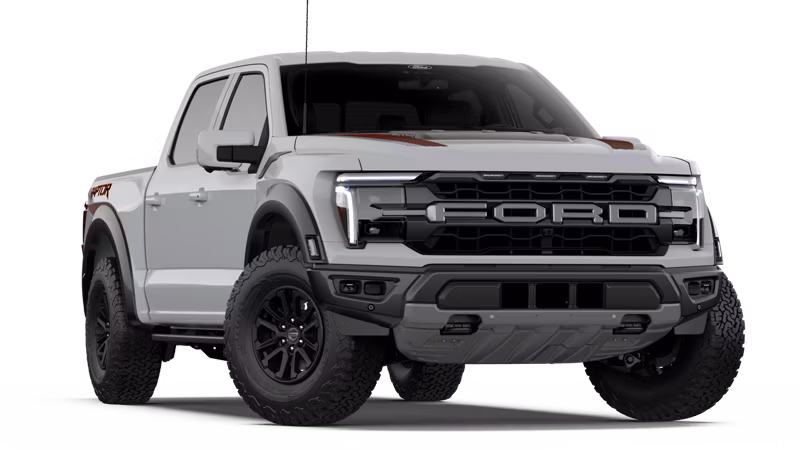

2026 Ford F-150® Raptor® 3.5L Ecoboost® V6 Supercrew® 6.5-Ft. Styleside 4X2
Pickup TrucksSuper-Duty
Description
Ford F-150® Raptor® 3.5L Ecoboost® V6 Supercrew® 6.5-Ft. Styleside 4X2
Specifications
Manufacturer
Ford
Model
F-150® Raptor® 3.5L Ecoboost® V6 Supercrew® 6.5-Ft. Styleside 4X2
Year
2026
Category
Pickup Trucks
Subcategory
Super-Duty
Fuel capacity - Extended Range
36 gallons*
Engine Control System
Electronic
Horsepower (hp@rpm)
450 @ 5,850
Torque (lb-ft @rpm)
510 @ 3,000
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Premium Unleaded
Engine block material
Aluminum
Cylinder head material
Aluminum
Angle of approach
31.0 degrees
Angle of departure
23.9 degrees
Ramp breakover angle
22.7 degrees
Maximum Seating Capacity
6
Minimum Seating Capacity
5
Base Curb Weight - High-Output 3.5L EcoBoost® V6
5,710 lbs
Compression ratio
10.5:1
Main bearings
4
Valve operation
Roller Finger Follower
Oil Capacity (qt)
6
Coolant Capacity (L)
13
Transmission type
Electronic 10-Speed Automatic
Front suspension
Independent double-wishbone with coil-over shock and cast aluminum lower control arm
Rear suspension
5-link coil with Panhard rod
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Wheelbase
145.4 in
Overall length
232.6 in
Cab height
79.8 in
Width - Excluding mirrors
86.6 in
Width - Including standard mirrors
96.0 in
Width - Standard Mirrors folded
86.6 in
Track width - Front
74.0 in
Track width - Rear
73.6 in
Overhang - Front
37.0 in
Overhang - Rear
50.2 in
Ground clearance
12.0 in
Front bumper to back of cab
155.8 in
Open Tailgate to Ground (Lift-In Height)
37.0 in
Head room - Front
40.8 in
Head room - Rear
40.4 in
Shoulder room - Front
66.6 in
Shoulder room - Rear
65.8 in
Hip room - Front
62.5 in
Hip room - Rear
62.6 in
Max Leg room - Front
43.9 in
Leg room - Rear
43.6 in
Bore (in)
3.64
Stroke (in)
3.41
Displacement (cu in)
213
