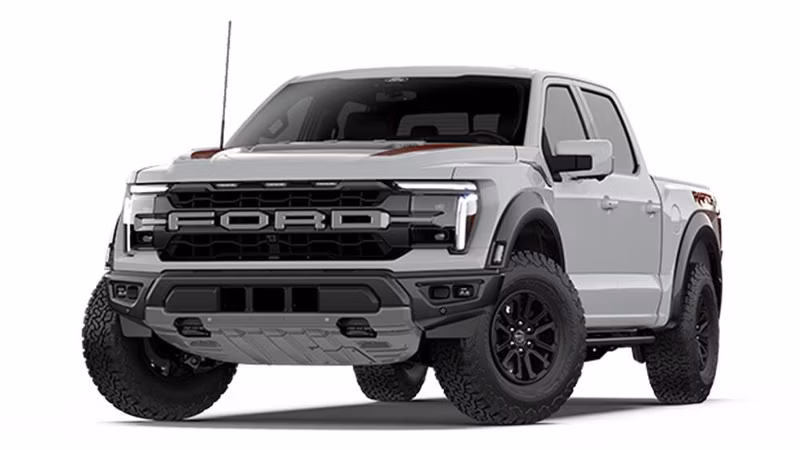

2026 Ford F-150® Raptor® 3.5L Ecoboost® V6 Supercrew® 5.5-Ft. Styleside 4X2
Pickup TrucksSuper-Duty
Description
Ford F-150® Raptor® 3.5L Ecoboost® V6 Supercrew® 5.5-Ft. Styleside 4X2
Specifications
Manufacturer
Ford
Model
F-150® Raptor® 3.5L Ecoboost® V6 Supercrew® 5.5-Ft. Styleside 4X2
Year
2026
Category
Pickup Trucks
Subcategory
Super-Duty
Fuel capacity - Extended Range
36 gallons*
Engine Control System
Electronic
Horsepower (hp@rpm)
450 @ 5,850
Torque (lb-ft @rpm)
510 @ 3,000
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Premium Unleaded
Engine block material
Aluminum
Cylinder head material
Aluminum
Pickup box style
5.5-ft Styleside Raptor®
Drive system
4x4
Angle of approach
31.0 degrees
Angle of departure
23.9 degrees
Ramp breakover angle
22.7 degrees
Cargo box style
5.5-ft Styleside
Maximum Seating Capacity
6
Minimum Seating Capacity
5
Base Curb Weight - High-Output 3.5L EcoBoost® V6 (F-150 Raptor® / F-150 Raptor® 37 Performance Pkg)
5,710 lbs / 5,867 lbs
Compression ratio
10.5:1
Main bearings
4
Valve operation
Roller Finger Follower
Oil Capacity (qt)
6
Coolant Capacity (L)
13
Transmission type
Electronic 10-Speed Automatic
Front suspension
Independent double-wishbone with coil-over shock and cast aluminum lower control arm
Rear suspension
5-link coil with Panhard rod
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Wheelbase
145.4 in
Overall length
232.6 in
Cab height
79.8 in
Width - Excluding mirrors
86.6 in
Width - Including standard mirrors
96.0 in
Width - Standard Mirrors folded
86.6 in
Track width - Front
74.0 in
Track width - Rear
73.6 in
Overhang - Front
37.0 in
Overhang - Rear
50.2 in
Ground clearance
12.0 in
Front bumper to back of cab
155.8 in
Open Tailgate to Ground (Lift-In Height)
37.0 in
Inside Length (at floor)
67.1 in
Width between wheelhouses
50.6 in
Inside Height
21.4 in
Cargo box volume
52.8 cu ft
Head room - Front
40.8 in
Head room - Rear
40.4 in
Shoulder room - Front
66.6 in Raptor®
Shoulder room - Rear
65.8 in Raptor®
Hip room - Front
62.5 in
Hip room - Rear
62.6 in
Max Leg room - Front
43.9 in
Leg room - Rear
43.6 in
Bore (in)
3.64
Stroke (in)
3.41
Displacement (cu in)
213
