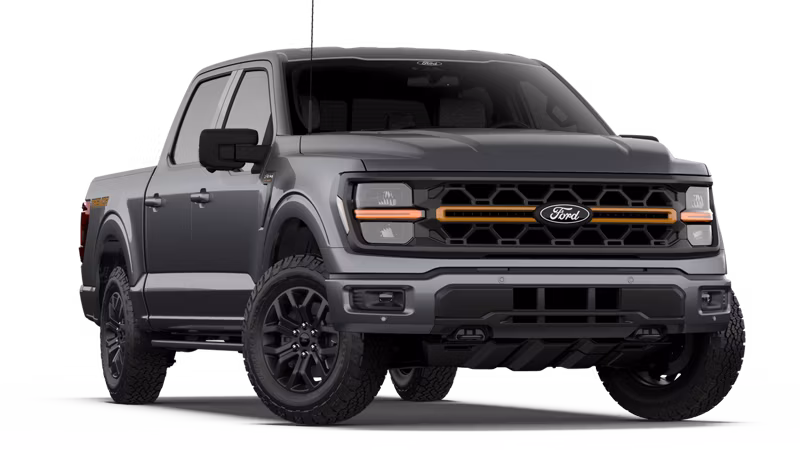

2026 Ford F-150® Tremor® 5.0L Ti-Vct V8 Supercrew® 6.5-Ft. Styleside 4X2
Pickup TrucksSuper-Duty
Description
Ford F-150® Tremor® 5.0L Ti-Vct V8 Supercrew® 6.5-Ft. Styleside 4X2
Specifications
Manufacturer
Ford
Model
F-150® Tremor® 5.0L Ti-Vct V8 Supercrew® 6.5-Ft. Styleside 4X2
Year
2026
Category
Pickup Trucks
Subcategory
Super-Duty
Capacities - Fuel capacity - Extended Range
36 gallons*
Capacities - Fuel capacity - PowerBoost® Hybrid
30.6 gallons
Engine - Engine type
5.0L Ti-VCT V8
Engine - Engine Control System
Electronic
Engine - Horsepower (hp@rpm)
400 @ 6,000
Engine - Torque (lb-ft @rpm)
410 @ 4,250
Engine - Compression ratio
12:1
Engine - Displacement (cu in)
307
Engine - Main bearings
5
Engine - Valve operation
Roller Finger Follower
Engine - Fuel delivery
Port Fuel Injection and Direct Injection
Engine - Recommended fuel
Regular Unleaded or E85
Engine - Oil Capacity (qt)
7.75
Engine - Coolant Capacity (L)
12.5
Engine - Transmission type
Electronic 10-Speed Automatic
Engine - Engine block material
Aluminum
Engine - Cylinder head material
Aluminum
Exterior - Cab style
SuperCrew®
Exterior - Pickup box style
6.5-ft Styleside
Exterior - Drive system
4x2
Exterior - Angle of approach
24.8 degrees
Exterior - Angle of departure
27.7 degrees
Exterior - Ramp breakover angle
18.8 degrees
Interior - Cab style
SuperCrew®
Capacities - Cab style
SuperCrew®
Capacities - Maximum Seating Capacity
6
Capacities - Minimum Seating Capacity
5
Capacities - Curb Weight - Cab style
SuperCrew®
Capacities - Curb Weight - Pickup box style
6.5-ft Styleside
Capacities - Curb Weight - Drive system
4x2
Chassis - Front suspension
Independent double-wishbone with coil-over shock and stamped lower control arm
Chassis - Rear suspension
Leaf spring/solid axle
Chassis - Front and rear shocks
Heavy-duty gas-pressurized
Chassis - Brakes
Power 4-wheel anti-lock vented disc
Chassis - Steering
Electric Power-Assisted
Exterior - Wheelbase
157.2 in
Exterior - Overall length
243.8 in
Exterior - Cab height
77.5 in
Exterior - Width - Excluding mirrors
79.9 in
Exterior - Width - Including standard mirrors
95.7 in
Exterior - Width - Standard Mirrors folded
83.6 in
Exterior - Track width - Front
67.9 in
Exterior - Track width - Rear
68.3 in
Exterior - Overhang - Front
37.4 in
Exterior - Overhang - Rear
49.2 in
Exterior - Ground clearance
9.7 in
Exterior - Front bumper to back of cab
155.6 in
Exterior - Open Tailgate to Ground (Lift-In Height)
34.1 in
Exterior Dimensions - Cargo Box - Cargo box style
6.5-ft Styleside
Exterior Dimensions - Cargo Box - Inside Length (at floor)
78.9 in
Exterior Dimensions - Cargo Box - Width between wheelhouses
50.6 in
Exterior Dimensions - Cargo Box - Inside Height
21.4 in
Exterior Dimensions - Cargo Box - Cargo box volume
62.3 cu ft
Interior - Head room - Front
40.8 in
Interior - Head room - Rear
40.4 in
Interior - Shoulder room - Front
66.7 in (66.6 in Raptor®)
Interior - Shoulder room - Rear
66.0 in (65.8 in Raptor®)
Interior - Hip room - Front
62.5 in
Interior - Hip room - Rear
62.6 in
Interior - Max Leg room - Front
43.9 in
Interior - Leg room - Rear
43.6 in
Engine - Bore (in)
3.66
Engine - Stroke (in)
3.65
