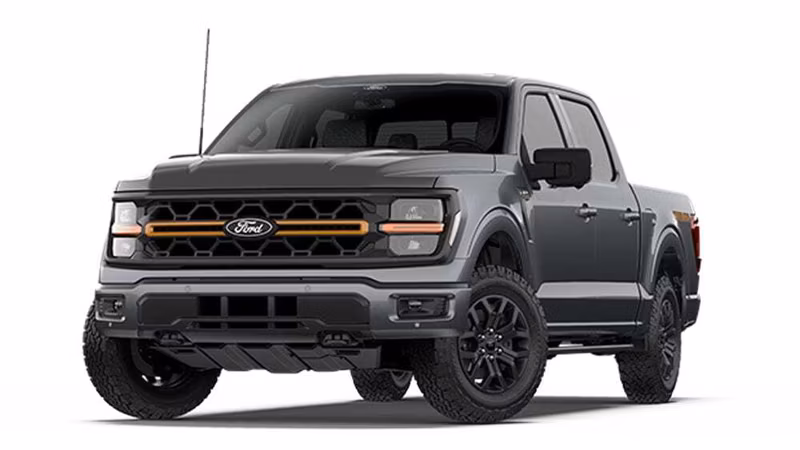

2026 Ford F-150® Tremor® High-Output Supercharged 5.2L V8 Supercrew® 5.5-Ft. Styleside 4X2
Pickup TrucksSuper-Duty
Description
Ford F-150® Tremor® High-Output Supercharged 5.2L V8 Supercrew® 5.5-Ft. Styleside 4X2
Specifications
Manufacturer
Ford
Model
F-150® Tremor® High-Output Supercharged 5.2L V8 Supercrew® 5.5-Ft. Styleside 4X2
Year
2026
Category
Pickup Trucks
Subcategory
Super-Duty
Fuel capacity - Extended Range
36 gallons*
Fuel capacity - PowerBoost® Hybrid
30.6 gallons
Engine Control System
Electronic
Horsepower (hp@rpm)
720 @ 6,650
Torque (lb-ft @rpm)
640 @ 4,250
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Premium Unleaded
Engine block material
Aluminum
Cylinder head material
Aluminum
Cab style
SuperCrew®
Pickup box style
5.5-ft Styleside
Drive system
4x2
Angle of approach
23.3 degrees
Angle of departure
24.3 degrees
Ramp breakover angle
17.1 degrees
Cargo box style
5.5-ft Styleside
Interior - Cab style
SuperCrew®
Maximum Seating Capacity
6
Minimum Seating Capacity
5
Compression ratio
9.5:1
Main bearings
5
Valve operation
Roller Finger Follower
Oil Capacity (qt)
11.5
Coolant Capacity (L)
12.0 (Engine) 3.1 Supercharger
Transmission type
Electronic 10-Speed Automatic
Front suspension
Independent double-wishbone with coil-over shock and cast aluminum lower control arm
Rear suspension
5-link coil with Panhard rod
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Wheelbase
145.4 in
Overall length
232.0 in
Cab height
75.4 in
Width - Excluding mirrors
79.9 in
Width - Including standard mirrors
95.7 in
Width - Standard Mirrors folded
83.6 in
Track width - Front
67.9 in
Track width - Rear
68.3 in
Overhang - Front
37.4 in
Overhang - Rear
49.2 in
Ground clearance
8.2 in
Front bumper to back of cab
155.6 in
Open Tailgate to Ground (Lift-In Height)
32.7 in
Inside Length (at floor)
67.1 in
Width between wheelhouses
50.6 in
Inside Height
21.4 in
Cargo box volume
52.8 cu ft
Head room - Front
40.8 in
Head room - Rear
40.4 in
Shoulder room - Front
66.7 in (66.6 in Raptor®)
Shoulder room - Rear
66.0 in (65.8 in Raptor®)
Hip room - Front
62.5 in
Hip room - Rear
62.6 in
Max Leg room - Front
43.9 in
Leg room - Rear
43.6 in
Bore (in)
3.7
Stroke (in)
3.7
Displacement (cu in)
315
