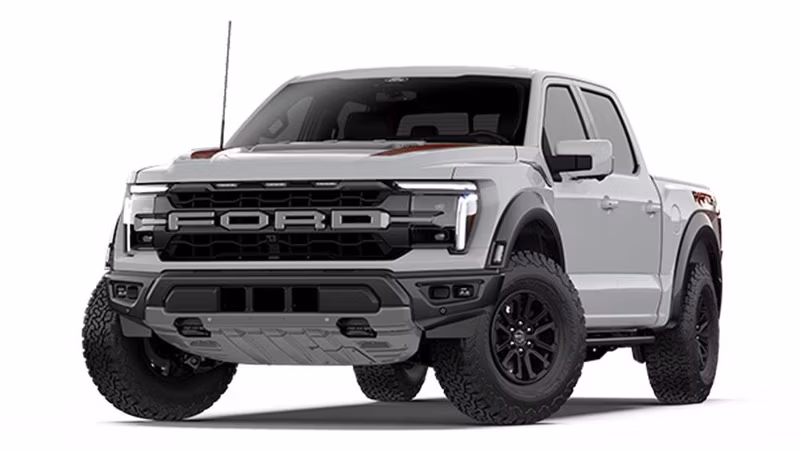

2026 Ford F-150® Raptor® 3.5L Powerboost® Full Hybrid V6 Supercrew® 5.5-Ft. Styleside 4X2
Pickup TrucksSuper-Duty
Description
Ford F-150® Raptor® 3.5L Powerboost® Full Hybrid V6 Supercrew® 5.5-Ft. Styleside 4X2
Specifications
Manufacturer
Ford
Model
F-150® Raptor® 3.5L Powerboost® Full Hybrid V6 Supercrew® 5.5-Ft. Styleside 4X2
Year
2026
Category
Pickup Trucks
Subcategory
Super-Duty
Wheelbase
145.4 in
Overall length
232.0 in
Cab height
75.4 in
Width - Excluding mirrors
79.9 in
Width - Including standard mirrors
95.7 in
Width - Standard Mirrors folded
83.6 in
Track width - Front
67.9 in
Track width - Rear
68.3 in
Overhang - Front
37.4 in
Overhang - Rear
49.2 in
Ground clearance
8.2 in
Front bumper to back of cab
155.6 in
Open Tailgate to Ground (Lift-In Height)
32.7 in
Inside Length (at floor)
67.1 in
Width between wheelhouses
50.6 in
Inside Height
21.4 in
Head room - Front
40.8 in
Head room - Rear
40.4 in
Shoulder room - Front
66.6 in
Shoulder room - Rear
65.8 in
Hip room - Front
62.5 in
Hip room - Rear
62.6 in
Max Leg room - Front
43.9 in
Leg room - Rear
43.6 in
Cab style
SuperCrew®
Maximum Seating Capacity
6
Minimum Seating Capacity
5
Fuel capacity - Extended Range
36 gallons*
Fuel capacity - PowerBoost® Hybrid
30.6 gallons
Pickup box style
5.5-ft Styleside
Drive system
4x2
Angle of approach
23.3 degrees
Angle of departure
24.3 degrees
Ramp breakover angle
17.1 degrees
Cargo box style
5.5-ft Styleside
Cargo box volume
52.8 cu ft
Base Curb Weight - 3.5L EcoBoost® V6
4,844 lbs
Chassis
F-150®
Front suspension
Independent double-wishbone with coil-over shock and stamped lower control arm
Rear suspension
Leaf spring/solid axle
Front and rear shocks
Heavy-duty gas-pressurized
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Engine type
3.5L PowerBoost® Full Hybrid V6
Engine Control System
Electronic
Horsepower (hp@rpm)
420 @ 6,000*
Torque (lb-ft @rpm)
570 @ 3,000*
Total System Horsepower (hp@rpm)
420 @ 6,000*
Total System Torque (lb-ft @rpm)
570 @ 3,000*
Compression ratio
10.5:1
Bore (in)
3.64
Stroke (in)
3.41
Displacement (cu in)
213
Main bearings
4
Valve operation
Roller Finger Follower
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Regular Unleaded
Oil Capacity (qt)
6
Coolant Capacity (L)
14.5 high temp loop, 6.8 low temp loop
Transmission type
Electronic 10-Speed Automatic Modular Hybrid
Engine block material
Aluminum
Cylinder head material
Aluminum
