Description

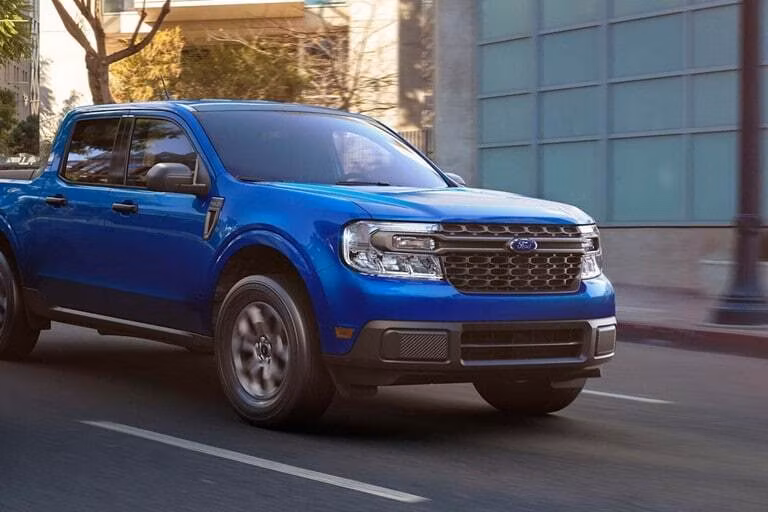

Ford Maverick® XL 2.5-liter FHEV
Specifications
Manufacturer
Ford
Model
Maverick® XL 2.5-Liter FHEV
Year
2026
Category
Pickup Trucks
Subcategory
Super Duty Pickups
Wheelbase
121.1
Length
199.7
Height - Maximum
68.7
Width - Maximum Body Width - Measured to Body Mirrors
83.5
Width - Mirrors Folded
77.9
Vehicle Track - Front
63.4
Vehicle Track - Rear
62.8
Overhang - Front
34.1
Overhang - Rear
44.5
Front of Bumper to Back of Cab
137.6
Approach Angle (degrees) - FWD/AWD
20.6/21.6
Approach Angle (degrees) - FX4/Tremor
21.6/30.7
Departure Angle (degrees) - FWD/AWD
21.9/21.2
Departure Angle (degrees) - FX4/Tremor
21.2/22.2
Ramp Breakover Angle (degrees) - FWD/AWD
16.6/18.1
Ramp Breakover Angle (degrees) - FX4/Tremor
18.1/19.9
Ground Clearance (Minimum) (in) - FWD/AWD
8.3/8.6
Ground Clearance (Minimum) - FX4/Tremor
8.6/9.4
Curb Weight(lbs) - 2.5L Hybrid (FWD Only)
3674
Lift-in Height
30.1
Pickup Body Height
20.3
Pickup Body Length at Floor
54.4
Cargo Width - Wheel House
42.6
Exposed Cargo Width
53.3
Cargo Volume (cu ft)
33.3
Head Room - Front
40.3
Head Room - Front (with moonroof)
38.0
Head Room - Second
39.6
Head Room - Second (with moonroof)
39.5
Leg Room - Front
42.8
Leg Room - Second
35.9 (2.5L Hybrid) / 36.9 (2.0L)
Hip Room - Front
55.4
Hip Room - Second
54.1
Shoulder Room - Front
57.3
Shoulder Room - Second
55.6
Passenger Volume (cu ft)
100.3
Body Type
Unibody, SuperCrew (4-Door), Compact Pickup
Max Seating
5
Maximum Towing
4,000 lbs With Max Tow Package (4K Tow Pack)
Fuel Capacity
13.8 Gallons on 2.5L Hybrid
Drive Type
FWD (2.5L Hybrid or 2.0L EcoBoost)
2.5L Horsepower | Torque
HP = 191 Combined Horsepower @ 5,600 rpm | TQ = 155 lb-ft @ 4,000 rpm (TQ rated for engine only not combined output)
Cargo Box
Imperial (inches unless otherwise noted)
Engine
2.5-liter FHEV (Standard)
Configuration
Aluminum block and head, Atkinson cycle I-4
Manufacturing Location
Chihuahua, Mexico
Intake Manifold
Composite
Exhaust Manifold
Integrated
Valvetrain
DOHC, IVCT
Pistons
Aluminum
Connecting Rods
Powder Forged
Bore and Stroke
3.50 x 3.94 in
Displacement
152 cu in
Compression Ratio
13.0:1
Crankshaft
Forged Steel
Horsepower*
191 Total - 162 Combustion hp @ 5,600 rpm
Torque*
155 lb-ft @ 4,000 rpm
Fuel Delivery
SMFI
Oil Capacity
5.7 Quarts
Coolant Capacity
11.6 Quarts (Gas Engine)/4.7 Quarts (Electric)
Electric Motor Type
Permanent Magnet Electric Traction (Ford In House E_Motor)
Electric Motor Output
94 kW/173 lb-ft battery peak
Battery Cooling System
Liquid
Battery Location
Passenger Side Under Cabin
Transmission
Power-Split: Electronic Continuously Variable Transmission (2.5L FHEV)
Final Gear Ratio
2.91:1
Steering
Electric power-assisted steering (EPAS)
Turning Circle (Curb to Curb)
40 Feet
Front Suspension
Independent MacPherson strut-type suspension with coil springs, twin-tube hydraulic Gas-pressurized shocks, stabilizer bars, aluminum lower control arm, steel sub-frame and cast knuckle
Rear FWD Suspension
Independent twist-beam rear suspension with integrated stabilizer bar, Ford patented “force vectoring springs”, twin-tube hydraulic Gas-pressurized dampers
Brakes
4-wheel disc brakes with ABS and regenerative braking system
Towing Engine
2.5L Hybrid
Towing Base (FWD/AWD)
2,000 lbs (FWD Only)
