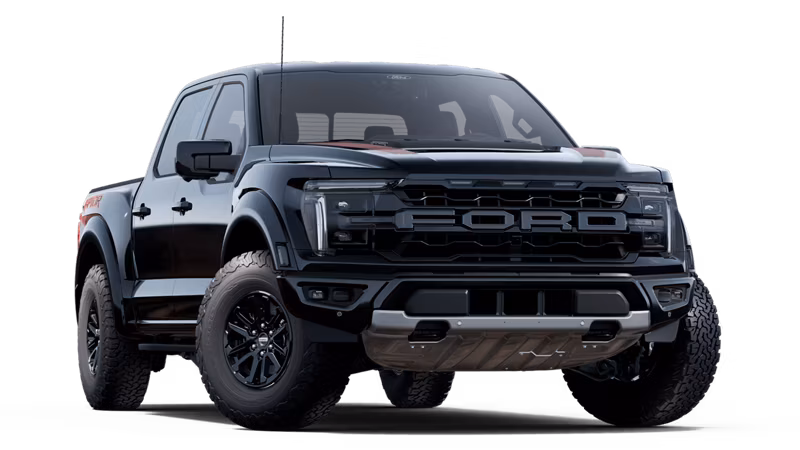

2026 Ford F-150 Raptor 3.5L PowerBoost® Full Hybrid V6 Regular Cab 6.5-ft. Styleside 4x4
Pickup TrucksOff Roading
Description
Ford F-150 Raptor 3.5L PowerBoost® Full Hybrid V6 Regular Cab 6.5-ft. Styleside 4x4
Specifications
Manufacturer
Ford
Model
F-150 Raptor 3.5L PowerBoost® Full Hybrid V6 Regular Cab 6.5-ft. Styleside 4x4
Year
2026
Category
Pickup Trucks
Subcategory
Off Roading
Base Curb Weight - 3.5L PowerBoost® Full Hybrid V6
5,585 lbs
Engine Control System
Electronic
Horsepower (hp@rpm)
430 @ 6,000*
Torque (lb-ft @rpm)
570 @ 3,000*
Total System Horsepower (hp@rpm)
430 @ 6,000*
Total System Torque (lb-ft @rpm)
570 @ 3,000*
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Regular Unleaded
Engine block material
Aluminum
Cylinder head material
Aluminum
Cab style
SuperCrew
Pickup box style
5.5-ft Styleside Raptor®
Drive system
4x4
Angle of approach
31.0 degrees
Angle of departure
23.9 degrees
Ramp breakover angle
22.7 degrees
Base Curb Weight - F-150 Raptor® R, 5.2L V8
5,950 lbs
Base Curb Weight - High-Output 3.5L EcoBoost V6 (F-150 Raptor® / F-150 Raptor® 37 Performance Pkg)
5,710 lbs / 5,867 lbs
Compression ratio
10.5:1
Bore (in)
3.64
Stroke (in)
3.41
Main bearings
4
Valve operation
Roller Finger Follower
Oil Capacity (qt)
6
Coolant Capacity (L)
14.5 high temp loop, 6.8 low temp loop
Transmission type
Electronic 10-Speed Automatic Modular Hybrid
Front suspension
Independent double-wishbone with coil-over shock and cast aluminum lower control arm
Rear suspension
5-link coil with Panhard rod
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Maximum Seating Capacity
3
Minimum Seating Capacity
3
Fuel capacity - Standard Range
23 gallons
Fuel capacity - Extended Range
36 gallons*
Cargo box volume
62.3 cu ft
Displacement (cu in)
213
Wheelbase
145.4 in
Overall length
232.6 in
Cab height
79.8 in
Width - Excluding mirrors
86.6 in
Width - Including standard mirrors
96.0 in
Width - Standard Mirrors folded
86.6 in
Track width - Front
74.0 in
Track width - Rear
73.6 in
Overhang - Front
37.0 in
Overhang - Rear
50.2 in
Ground clearance
12.0 in
Front bumper to back of cab
155.8 in
Open Tailgate to Ground (Lift-In Height)
37.0 in
Head room - Front
40.8 in
Shoulder room - Front
66.7 in
Hip room - Front
62.5 in
Max Leg room - Front
43.9 in
Inside Length (at floor)
78.9 in
Width between wheelhouses
50.6 in
Inside Height
21.4 in
