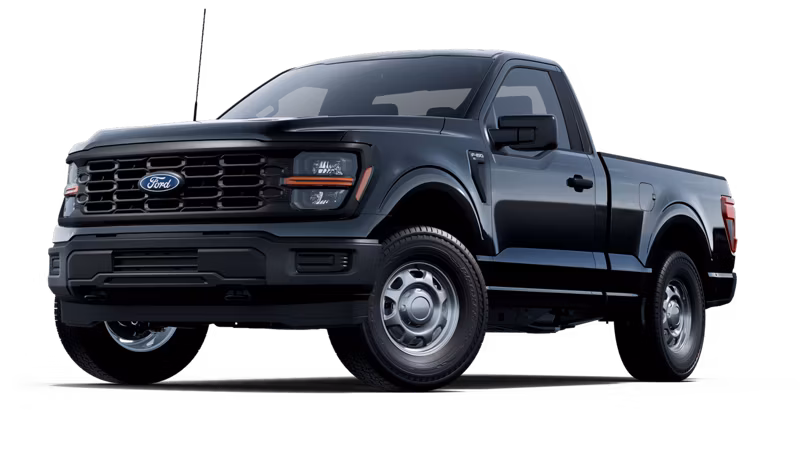

2026 Ford F-150 Xlt 3.5L PowerBoost® Full Hybrid V6 Regular Cab 6.5-ft. Styleside 4x4
Pickup TrucksOff Roading
Description
Ford F-150 XLT 3.5L PowerBoost® Full Hybrid V6 Regular Cab 6.5-ft. Styleside 4x4
Specifications
Manufacturer
Ford
Model
F-150 Xlt 3.5L PowerBoost® Full Hybrid V6 Regular Cab 6.5-ft. Styleside 4x4
Year
2026
Category
Pickup Trucks
Subcategory
Off Roading
Fuel capacity - Extended Range
36 gallons*
Fuel capacity - PowerBoost® Hybrid
30.6 gallons
Base Curb Weight - 3.5L PowerBoost® Full Hybrid V6
5,585 lbs
Engine Control System
Electronic
Horsepower (hp@rpm)
430 @ 6,000*
Torque (lb-ft @rpm)
570 @ 3,000*
Total System Horsepower (hp@rpm)
430 @ 6,000*
Total System Torque (lb-ft @rpm)
570 @ 3,000*
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Regular Unleaded
Engine block material
Aluminum
Cylinder head material
Aluminum
Fuel capacity - Standard Range
23 gallons
Fuel capacity - Extended Range
36 gallons*
Angle of approach
23.7 degrees
Angle of departure
26.0 degrees
Ramp breakover angle
23.3 degrees
Maximum Seating Capacity
6
Minimum Seating Capacity
5
Cab style
SuperCrew®
Pickup box style
5.5-ft Styleside
Drive system
4x4
Base Curb Weight - 2.7L EcoBoost V6
4,941 lbs
Base Curb Weight - 5.0L Ti-VCT V8
5,020 lbs/5,267 lbs* lbs
Base Curb Weight - 3.5L EcoBoost V6
5,096 lbs / 5,260 lbs* lbs
Base Curb Weight - High-Output 3.5L EcoBoost V6 (F-150 Raptor® / F-150 Raptor® 37 Performance Pkg)
5,710 lbs / 5,867 lbs lbs
Base Curb Weight - F-150 Raptor® R, 5.2L V8
5,950 lbs lbs
Compression ratio
10.5:1
Main bearings
4
Valve operation
Roller Finger Follower
Oil Capacity (qt)
6 qt
Coolant Capacity (L)
14.5 high temp loop, 6.8 low temp loop L
Transmission type
Electronic 10-Speed Automatic Modular Hybrid
Front suspension
Independent double-wishbone with coil-over shock and stamped lower control arm
Rear suspension
Leaf spring/solid axle
Front and rear shocks
Heavy-duty Gas-pressurized
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Displacement (cu in)
213 cu in
Inside Length (at floor)
78.9 in
Width between wheelhouses
50.6 in
Inside Height
21.4 in
Cargo box volume
62.3 cu ft
Wheelbase
122.8 in
Overall length
209.4 in
Cab height
76.9 in
Width - Excluding mirrors
79.9 in
Width - Including standard mirrors
95.7 in
Width - Standard Mirrors folded
83.6 in
Track width - Front
67.9 in
Track width - Rear
68.3 in
Overhang - Front
37.4 in
Overhang - Rear
49.2 in
Ground clearance
9.8 in
Front bumper to back of cab
121.2 in
Open Tailgate to Ground (Lift-In Height)
35.6 in
Head room - Front
40.8 in
Shoulder room - Front
66.7 in
Hip room - Front
62.5 in
Max Leg room - Front
43.9 in
Bore (in)
3.64 in
Stroke (in)
3.41 in
