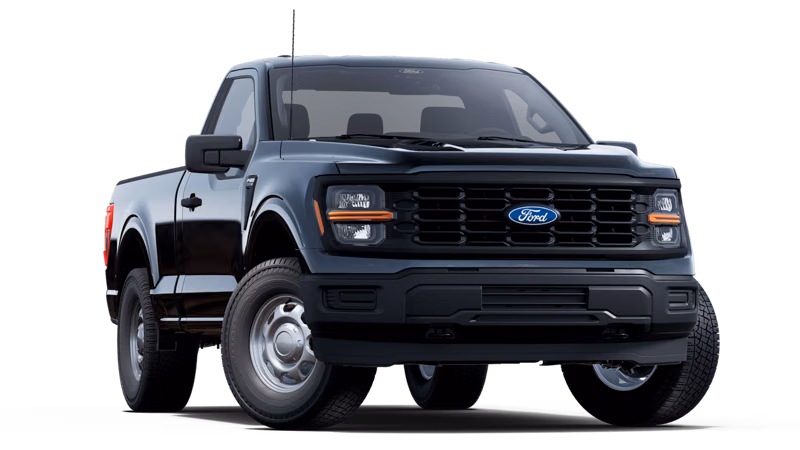

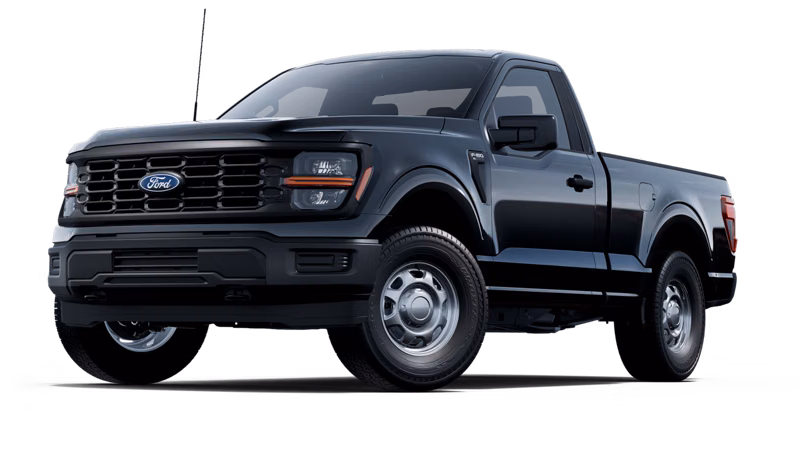

2026 Ford F-150 XL 3.5L EcoBoost V6 SuperCrew® 6.5-ft. Styleside 4x2
Pickup TrucksOff Roading
Description
Ford F-150 XL 3.5L EcoBoost V6 SuperCrew® 6.5-ft. Styleside 4x2
Specifications
Manufacturer
Ford
Model
F-150 XL 3.5L EcoBoost V6 SuperCrew® 6.5-ft. Styleside 4x2
Year
2026
Category
Pickup Trucks
Subcategory
Off Roading
Engine Control System
Electronic
Horsepower (hp@rpm)
400 @ 6,000
Torque (lb-ft @rpm)
500 @ 3,100
Fuel delivery
Port Fuel Injection and Direct Injection
Recommended fuel
Regular Unleaded
Engine block material
Aluminum
Cylinder head material
Aluminum
Maximum Seating Capacity
6
Minimum Seating Capacity
5
Fuel capacity - Standard Range
23 gallons
Fuel capacity - Extended Range
36 gallons*
Angle of approach
24.8 degrees
Angle of departure
27.7 degrees
Ramp breakover angle
18.8 degrees
Cargo box volume
62.3 cu ft
Cab style
SuperCrew®
Pickup box style
6.5-ft Styleside
Drive system
4x2
Compression ratio
10.5:1
Bore (in)
3.64
Stroke (in)
3.41
Main bearings
4
Valve operation
Roller Finger Follower
Oil Capacity (qt)
6
Coolant Capacity (L)
13.5
Transmission type
Electronic 10-Speed Automatic
Front suspension
Independent double-wishbone with coil-over shock and stamped lower control arm
Rear suspension
Leaf spring/solid axle
Front and rear shocks
Heavy-duty Gas-pressurized
Brakes
Power 4-wheel anti-lock vented disc
Steering
Electric Power-Assisted
Displacement (cu in)
213
Inside Length (at floor)
78.9 in
Width between wheelhouses
50.6 in
Inside Height
21.4 in
Cargo box volume
62.3 cu ft
Wheelbase
157.2 in
Overall length
243.8 in
Cab height
77.5 in
Width - Excluding mirrors
79.9 in
Width - Including standard mirrors
95.7 in
Width - Standard Mirrors folded
83.6 in
Track width - Front
67.9 in
Track width - Rear
68.3 in
Overhang - Front
37.4 in
Overhang - Rear
49.2 in
Ground clearance
9.7 in
Front bumper to back of cab
155.6 in
Open Tailgate to Ground (Lift-In Height)
34.1 in
Head room - Front
40.8 in
Head room - Rear
40.4 in
Shoulder room - Front
66.7 in (66.6 in Raptor®)
Shoulder room - Rear
66.0 in (65.8 in Raptor®)
Hip room - Front
62.5 in
Hip room - Rear
62.6 in
Max Leg room - Front
43.9 in
Leg room - Rear
43.6 in
