2025 Ford 2025 E-Series Cutaway E-350 DRW 7.3L V8 Premium-rated Engine (176" Wheelbase)
Cab / Chassis TrucksCab / Chassis Trucks
Description
Ford 2025 E-Series Cutaway E-350 DRW 7.3L V8 Premium-rated Engine (176" Wheelbase)
Specifications
Manufacturer
Ford
Model
2025 E-Series Cutaway E-350 DRW 7.3L V8 Premium-rated Engine (176" Wheelbase)
Year
2025
Category
Cab / Chassis Trucks
Subcategory
Cab / Chassis Trucks

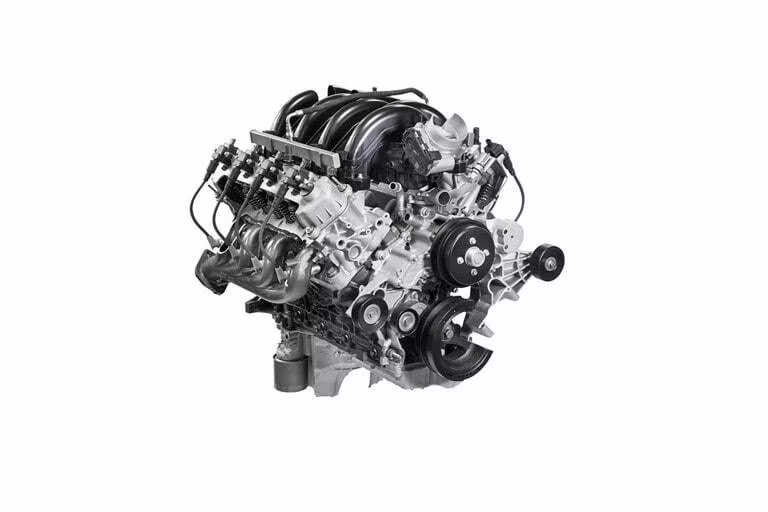

Engine type
7.3L V8 Premium-rated Engine
Engine electronics
Bosch Multicore MG1CS019
Horsepower (SAE net@rpm)
325@3,800
Torque (lb-ft @rpm)
450@3,800
Fuel delivery
Port Fuel Injection
Engine block material
Cast Iron
Cylinder head material
Aluminum
Estimated base Curb Weight in lbs (GVWR)
5,297 lbs (12,500 lbs GVWR)
Compression ratio
10.5:1
Bore x stroke (in)
4.22 x 3.97
Main bearings
5 Main Bearings
Valvetrain
OHV / 2 Valves Per Cylinder
Valve lifters
Hydraulic Roller Lifters
Exhaust
Cast Stainless Steel (LH & RH)

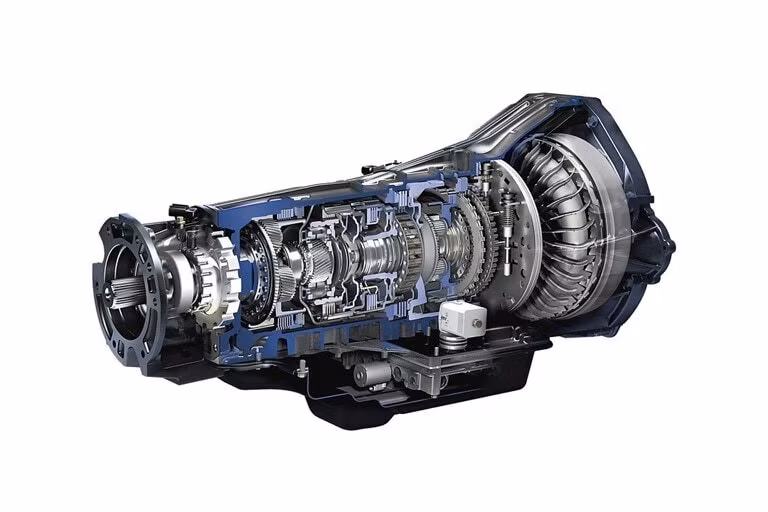

Transmission type
6-speed automatic transmission with overdrive and Tow Haul
Front suspension
Twin I-beam IFS with computer-selected coil springs and stabilizer bar
Rear suspension
Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only)
Front and rear shocks
Heavy-duty gas-pressurized
Brakes
Power 4-wheel disc anti-lock, with traction control
Steering
Recirculating ball, power-assisted
E-350 (DRW) 176" Wheelbase
7.3L Premium
Wheelbase (in)
176 in
Overall Length (in)
261.1 in
Overall Height (Loaded) (in)
80.1 in
Overall Width (in)
94.9 in
Front Track (in)
69.4 in
Rear Track (in)
75.4 in
Cab Length (in)
92.5 in
Cab Rear to Rear Axle (in)
118 in
Top of Frame to Top of Cab (in)
54.4 in
Rear Axle to End of Frame (in)
50.5 in
Load Height (loaded) (in)
26.2 in
Front Overhang (in)
34.6 in
Displacement
445
First row Head Room
42 (in)
First row Shoulder room
68.1 (in)
First row Hip Room
65.6 (in)
First row max Leg Room
42.1 (in)
