2026 Ford 2026 E-Series Cutaway E-350 DRW 7.3L V8 PFI Gas Engine (158" Wheelbase)
Cab / Chassis TrucksTrucks
Description
Ford 2026 E-Series Cutaway E-350 DRW 7.3L V8 PFI Gas Engine (158" Wheelbase)
Specifications
Manufacturer
Ford
Model
2026 E-Series Cutaway E-350 DRW 7.3L V8 PFI Gas Engine (158" Wheelbase)
Year
2026
Category
Cab / Chassis Trucks
Subcategory
Trucks
Engine type
7.3L V8 PFI Gas Engine
Engine electronics
Bosch Multicore MG1CS019
Horsepower (SAE net@rpm)
325@3,750
Torque (lb-ft @rpm)
450@3,750
Compression ratio
10.5:1
Main bearings
5 Main Bearings
Valvetrain
OHV / 2 Valves Per Cylinder
Valve lifters
Hydraulic Roller Lifters
Fuel delivery
Port Fuel Injection
Exhaust
Cast Stainless Steel (LH & RH)

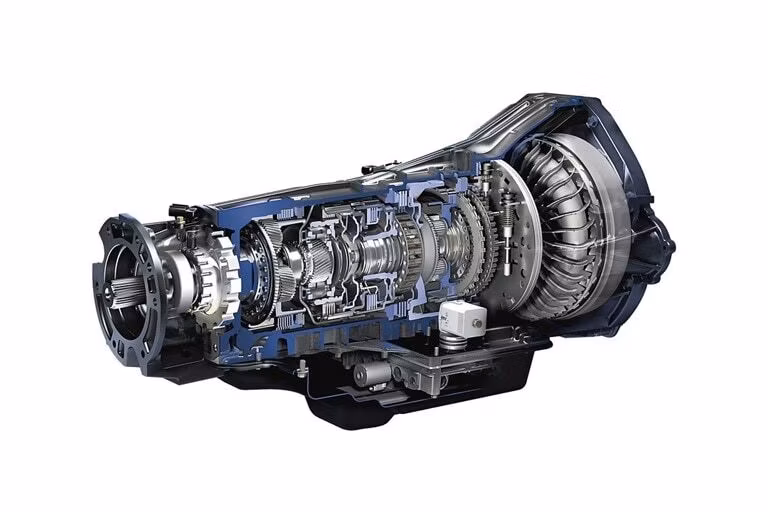

Transmission type
6-speed automatic transmission with overdrive and Tow Haul
Engine block material
Cast Iron
Cylinder head material
Aluminum
Estimated base Curb Weight in lbs (GVWR)
5,287 lbs (11,500 lbs GVWR)/ 5,287 lbs (12,500 lbs GVWR)
GCWR
18,500
GVWR
11,500
Payload
6,210
Fuel Capacity
40/55 gallons
Seating capacity (std/opt)
2/1
Front suspension
Twin I-beam IFS with computer-selected coil springs and stabilizer bar
Rear suspension
Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only)
Front and rear shocks
Heavy-duty gas-pressurized
Brakes
Power 4-wheel disc anti-lock, with traction control
Steering
Recirculating ball, power-assisted
Displacement
445
Wheelbase (in)
158
Overall Length (in)
261.1
Overall Height (Loaded) (in)
80.2
Overall Width (in)
94.9
Front Track (in)
69.4
Rear Track (in)
75.4
Cab Length (in)
92.5
Cab Rear to Rear Axle (in)
100
Top of Frame to Top of Cab (in)
54.4
Rear Axle to End of Frame (in)
68.5
Load Height (loaded) (in)
26.2
Front Overhang (in)
34.6
Bore x stroke (in)
4.22 x 3.97
First row Head Room (in)
42
First row Shoulder room (in)
68.1
First row Hip Room (in)
65.6
First row max. Leg Room (in)
42.1
