Description

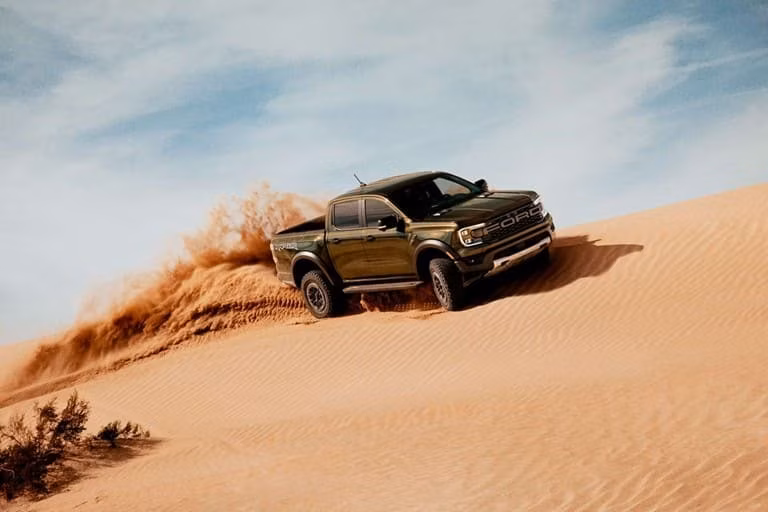

Ford - 2024 Ranger® Raptor® 3.0L EcoBoost® Engine
Specifications
Manufacturer
Ford
Model
2024 Ranger® Raptor® 3.0L EcoBoost® Engine
Year
2025
Category
Pickup Trucks
Subcategory
Super-Duty
Wheelbase
128.7 in
Pickup box style
5 ft Styleside
Overall length
210.9 in
Cab height
75.9 in
Width - Excluding mirrors
79.8 in
Width - Including mirrors
86.7 in
Width - Mirrors folded
79.0 in
Track width - Front
67.3 in
Track width - Rear
67.3 in
Overhang - Front
33.9 in
Overhang - Rear
48.2 in
Ground clearance
10.7 in
Front bumper to back of cab
143.2 in
Cargo box style
5 ft Styleside Raptor
Inside Length (at floor)
59.6 in
Width between wheelhouses
48.2 in
Inside Height
20.8 in
Bore (in)
3.36 in
Stroke (in)
3.38 in
Engine with Automatic Transmission
3.0L EcoBoost® I-4
Drive Type
4x4
Max Seating Capacity
5
Maximum Conventional Towing (When properly configured)
5,510 lbs
Maximum Payload (When properly configured)
1,411 lbs
Min Vehicle Base Curb Weight
5,325 lbs
Angle of approach
33.0 degrees
Angle of departure
26.4 degrees
Ramp breakover angle
24.2 degrees
Cargo box volume
43.5 cu ft
Fuel Capacity
20 gal
Engine Control System
PCM
Horsepower (SAE net @ rpm)
405
Compression ratio
10.5:1
Displacement (cu in)
180 cu in
Fuel delivery
Port fuel and direct injection
Recommended Fuel
91 Octane
Front and rear shocks
Fox Racing Shocks with Live Valve Technology
Brakes
Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and AdvanceTrac® electronic stability control
Steering
Electric power-assisted, rack-and-pinion
Axle Ratio
4.27
GCWR
11,464 lbs
Maximum Conventional Towing Capabilities*
5,510 lbs
GVWR
6,790 lbs
Maximum Payload Capabilities
1,411 lbs
Torque (lb-ft @ rpm)
430 lb-ft
Transmission type
Electronic 10-speed automatic
