2025 Ford 2024 Super Duty® Commercial F-450® XL 6.7L Power Stroke® V8 Turbo Diesel
Pickup TrucksSuper-Duty
Description
Ford-2024 Super Duty® Commercial F-450® XL 6.7L Power Stroke® V8 Turbo Diesel
Specifications
Manufacturer
Ford
Model
2024 Super Duty® Commercial F-450® XL 6.7L Power Stroke® V8 Turbo Diesel
Year
2025
Category
Pickup Trucks
Subcategory
Super-Duty

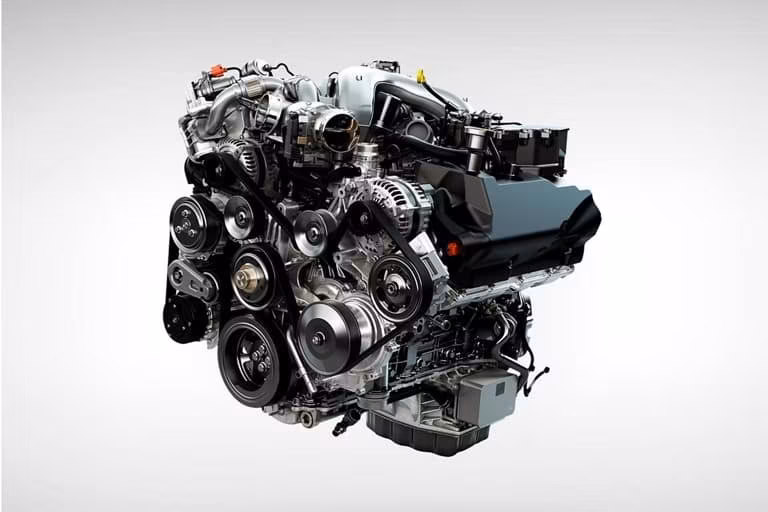

Engine Configuration
90-degree diesel V8, single turbocharger, in-block cams and overhead valves
Engine Name
6.7L Power Stroke® V8 Turbo Diesel
Fuel injection/delivery
High-Pressure Common-Rail
Engine control system
Electronic
Induction system
Variable Geometry Turbocharger; with charge air cooler
Battery
Dual 12V-volt 750CCA 78-AH,
Standard Alternator
195-amp (XL/XLT)
Cooling system
Pressurized series flow
Oil Life Monitor
Intelligent Oil Life Monitor®
Cylinders
8
Valve operation
Push rod/rocker arms
Camshaft drive
Gear
Bore
3.90
Stroke
4.25
Compression ratio
15.2:1
Torque lb-ft/rpm
1050 @ 1,600
Horsepower/rpm
475 @ 2,600
Recommended fuel
Ultra-low sulphur diesel/B20
Seating capacity Regular Cab
3
Regular Cab Passenger - total
64.7
Super Cab Passenger - total
116.3
Crew Cab Passenger - total
131.9
Regular Cab Cargo - behind first row
10.9
Super Cab Cargo - behind first row
30.3
Crew Cab Cargo - behind first row
53.4
Seating capacity Super Cab
6
Seating capacity Crew Cab
6
Fuel capacity Regular Cab
29 gallon (142" WB)
Fuel capacity Super Cab
29 gallon (148" WB), 34 gallon (164" WB)
Fuel capacity Crew Cab
34 gallon (160" WB), 48 gallon (176" WB)
max Front GAWR lbs (4x2)
5,600 (F-450)
max Front GAWR lbs (4x4) One
5,600 (F-450)
Shock absorbers
Heavy-duty gas
max Rear GAWR (F-450 4x2)
9,900 lbs
max Rear GAWR (F-450 4x4) One
9,900 lbs
Stabilizer bar
Standard on DRW pickup; optional in select packages on SRW pickup
STEERING Assist
Power Hydraulic
BRAKES Type
4-wheel vented-disc ABS (standard)
Transmission Type
TorqShift 10-speed SelectShift Automatic®
Power Takeoff
Live-drive access on driver side
Gear ratios 1st
4.696:1
Gear ratios 2nd
2.985:1
Gear ratios 3rd
2.146:1
Gear ratios 4th One
1.769:1
Gear ratios 5th Two
1.520:1
Gear ratios 6th Three
1.275:1
Gear ratios Reverse
-4.866:1
Gear ratios First
4.615:1
Gear ratios Second
2.919:1
Gear ratios Third
2.132:1
Gear ratios Fourth
1.773:1
Gear ratios Fifth
1.519:1
Gear ratios Sixth
1.277:1
Gear ratios Seventh
1.1
Gear ratios Eighth
0.851:1
Gear ratios Ninth
0.687:1
Gear ratios Tenth
0.632:1
Gear ratios Reverse One
-4.695:1
Towing Conventional Towing Regular Cab F-450 4x2/4x4 (lbs)
25,000/25,000
Towing Conventional Towing Crew Cab F-450 4x2/4x4 (lbs)
30,000/30,000
Towing 5th Wheel / Gooseneck Towing Regular Cab F-450 4x2/4x4 (lbs)
38,600/36,900
Towing 5th Wheel / Gooseneck Towing Crew Cab F-450 4x2/4x4 (lbs)
34,700/32,500
Payload Regular Cab 141.6" WB Long 8ft lbs
6,297/5,898
Payload 176" WB Long 8ft lbs
5,638/5,336
FRONT SUSPENSION Type
Mono beam (narrow front track) with coil springs, shock absorbers, stabilizer bar (F-250/F-350 4x4) Mono beam (wide front track) with coil springs, shock absorbers, stabilizer bar (F-450)
Rear Springs
Leaf
Front Springs
Coil
WHEELS Type
Steel or aluminum
Case material
Aluminum
Number of studs
10
Cylinder head
Aluminum
Block material
Compacted graphite iron
REAR SUSPENSION Type
Solid axle
