Description

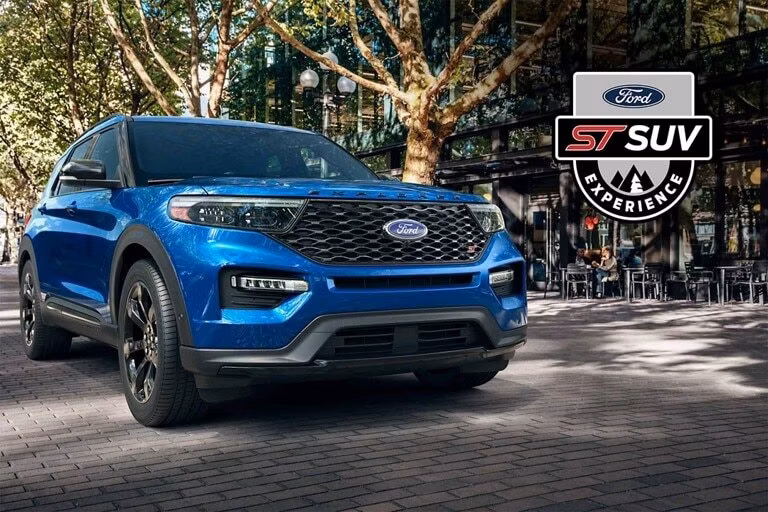

Ford 2023 Explorer ST 2.3L EcoBoost® I-4
Specifications
Manufacturer
Ford
Model
2023 Explorer ST 2.3L EcoBoost® I-4
Year
2025
Category
Automobiles
Subcategory
Automobiles
Wheelbase
119.1
Length
198.8
Height
69.9
Width - Excluding Mirrors
78.9
Width - Including Mirrors
89.3
Width - Mirrors Folded
82.7
Front Track
66.9
Rear Track
66.9
Front Overhang
33.7
Rear Overhang
46.9
Approach Angle (degrees)
21
Departure Angle (degrees)
22
Ramp Breakover Angle (degrees)
17.1
Minimum Running Ground Clearance
7.9
Head Room - First Row
40.7/38.9
Head Room - Second Row
40.5/38.2
Head Room - Third Row
38.9
Maximum Leg Room - First Row
43
Leg Room - Second Row
39
Leg Room - Third Row
32.2
Hip Room - First Row
59.2
Hip Room - Second Row
59.1
Hip Room - Third Row
40.9
Shoulder Room - First Row
61.8
Shoulder Room - Second Row
61.9
Shoulder Room - Third Row
54.6
Maximum Seating Capacity (occupants)
7
Passenger Volume
152.7
Cargo Volume Behind 3rd Row
18.2
Cargo Volume Behind 2nd Row
47.9
Cargo Volume Behind 1st Row
87.8
Wheels Available
18" Painted Aluminum, standard on base
Fuel capacity
Base/XLT/ST-Line/Timberline/Limited/ 17.9 US gal
Capacities: Seating
Explorer
Maximum Seating Capacity
7
Minimum Seating Capacity
6
Drive type
Rear-wheel drive with available intelligent four-wheel drive
Engine type
2.3L Turbocharged, Direct Injection Ti-VCT EcoBoost® I-4
Transmission
10-speed automatic (select shift capability available on Timberline)
Final drive ratio
3.58:1
Horsepower (net @ RPM)
300 @ 5,500 rpm*
Torque (lb-ft @ RPM)
310 @ 3,500 rpm*
Compression ratio
10.0:1
Valve lifters
Direct acting mechanical bucket
Induction System
Turbocharged
Fuel delivery
Direct Injection
Exhaust
Dual exhaust with chrome tips
Engine block type
Cast aluminum
Cylinder head material
Cast aluminum
Front suspension
MacPherson strut front suspension with 32mm front stabilizer bar
Front shocks
Gas-pressurized hydraulic
Rear suspension
Multi-link independent rear suspension with 22mm rear stabilizer bar
Rear shocks
Gas-pressurized hydraulic
Brakes
Power 4-wheel disc with Anti-lock Braking System (ABS)
Steering
Electronic Power-Assisted Steering (EPAS)
Towing Configuration
2.3L EcoBoost® I-4 RWD
Towing Axle Ratio
3.36
Towing Max Loaded Trailer Weight
5,300 lbs
