2025 Ford 2025 E-Series Cutaway E-350 SRW 7.3L V8 Premium-Rated Engine (138" Wheelbase)
Cab / Chassis TrucksTrucks
Description
Ford - 2025 E-Series Cutaway E-350 SRW 7.3L V8 Premium-Rated Engine (138" Wheelbase)
Specifications
Manufacturer
Ford
Model
2025 E-Series Cutaway E-350 SRW 7.3L V8 Premium-Rated Engine (138" Wheelbase)
Year
2025
Category
Cab / Chassis Trucks
Subcategory
Trucks
Wheelbase (in)
138
Overall Length (in)
241.1
Overall Height (Loaded) (in)
80.4
Overall Width (in)
79.4
Front Track (in)
69.4
Rear Track (in)
72.1
Cab Length (in)
92.5
Cab Rear to Rear Axle (in)
80
Top of Frame to Top of Cab (in)
54.4
Rear Axle to End of Frame (in)
68.5
Load Height (loaded) (in)
25.9
Front Overhang (in)
34.6
First row Head Room (in)
42
First row Shoulder room (in)
68.1
First row Hip Room (in)
65.6
First row max Leg Room (in)
42.1
Bore x stroke (in)
4.22 x 3.97
Estimated base Curb Weight in lbs (GVWR)
4,950 lbs (10,050 lbs GVWR)
Seating capacity (std./opt.)
2/1
Fuel capacity (gal)
40/55
Valve lifters
Hydraulic Roller Lifters
Fuel delivery
Port Fuel Injection
Front and rear shocks
Heavy-duty gas-pressurized
Brakes
Power 4-wheel disc anti-lock, with traction control
Steering
Recirculating ball, power-assisted
Payload
5,100
Drive Type
4x2
GVWR Range
10,050 lbs to 14,500 lbs
Maximum Payloads GCWR (SRW)
18,500
Maximum Payloads GVWR (SRW)
10,050
Maximum Payloads (SRW)
5,100

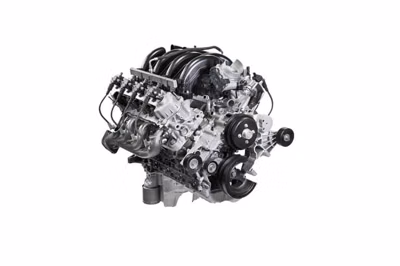

Engine type
7.3L V8 Premium-rated Engine
Engine electronics
Bosch Multicore MG1CS019
Displacement
445
Horsepower (SAE net@rpm)
325@3,800
Torque (lb-ft @rpm)
450@3,800
Compression ratio
10.5:1
Main bearings
5 Main Bearings
Valvetrain
OHV / 2 Valves Per Cylinder
Exhaust
Cast Stainless Steel (LH & RH)
Engine block material
Cast Iron
Cylinder head material
Aluminum
Front suspension
Twin I-beam IFS with computer-selected coil springs and stabilizer bar
Rear suspension
Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only)

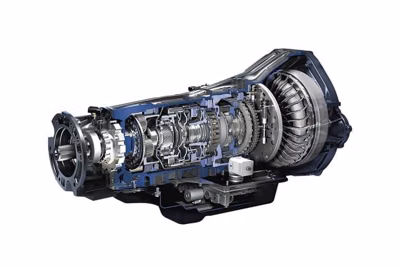

Transmission type
6-speed automatic transmission with overdrive and Tow Haul
